BRAND NEW JAYCO CARAVAN GETS COMPLETE OFF GRID POWER SYSTEM UPGRADE

Meet Starcraft Charlie, she is a brand newie; Jayco Starcraft Bush Pack Caravan.

Meet Alan, (Starcraft Charlie’s owner), he is all about spending more time off grid free camping all the way.

Alan isn’t into factory standard power systems, he wanted a powerful off grid solution built; without limitations now, and expandable should future power demands increase.

Alan opted to buy the standard caravan package and commissioned Outech to install his ultimate off grid power system to meet his specific requirements.

Get a load of Starcraft Charlie’s off grid power system that we built for Alan:

Enerdrive 1000W-24V Solar

Enerdrive 1000W-24V Solar

  • Installing the 24V solar panels instead of 12V maximises charge capacity resulting in staying off grid for longer.

Victron SmartSolar MPPT 150/70 Regulator

  • Programmed to charge on board lithium batteries

  • Remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Victron Cerbo GX -System monitoring

  • Intuitive communication hub that bings together all GX devises for remote monitoring through both blue tooth and VRM portal. Control state of charge, power consumption, diagnostics and more.

  • Any power challenges can be supported by Outech remotely via Cerbo GX so there is always help while off grid.

Victron MultPlus-II Inverter - 3000VA / 2600W

Victron MultPlus-II Inverter - 3000VA / 2600W

Victron MultPlus-II Inverter - 3000VA / 2600W

Victron MultPlus-II Inverter - 3000VA / 2600W

  • With PowerControl and PowerAssist, uninterrupted AC power control and remote monitoring and control via blue tooth and VRM portal.

Victron Smart Shunt 500A/50MV Battery Monitor

  • Connected via Bluetooth to the VictronConnect App; monitor battery charge, time to go, historical information and more.

  • Also connect to Cerbo GX where power challenges can be remotely support by Outech so that there is always help while off grid.

Victron VE Bus Smart Dongle

Victron VE Bus Smart Dongle

Victron VE Bus Smart Dongle

  • A Bluetooth accessory for the inverter and charger - gives ease of monitoring, plus operates the system: change the input current limit as well as switch between Off, On and Charger-only modes.

  • Also works as a Voltage- and Temperature-sense device for the inverter/charger. Simply get out your phone, laptop or other devise for convenient monitoring and control.

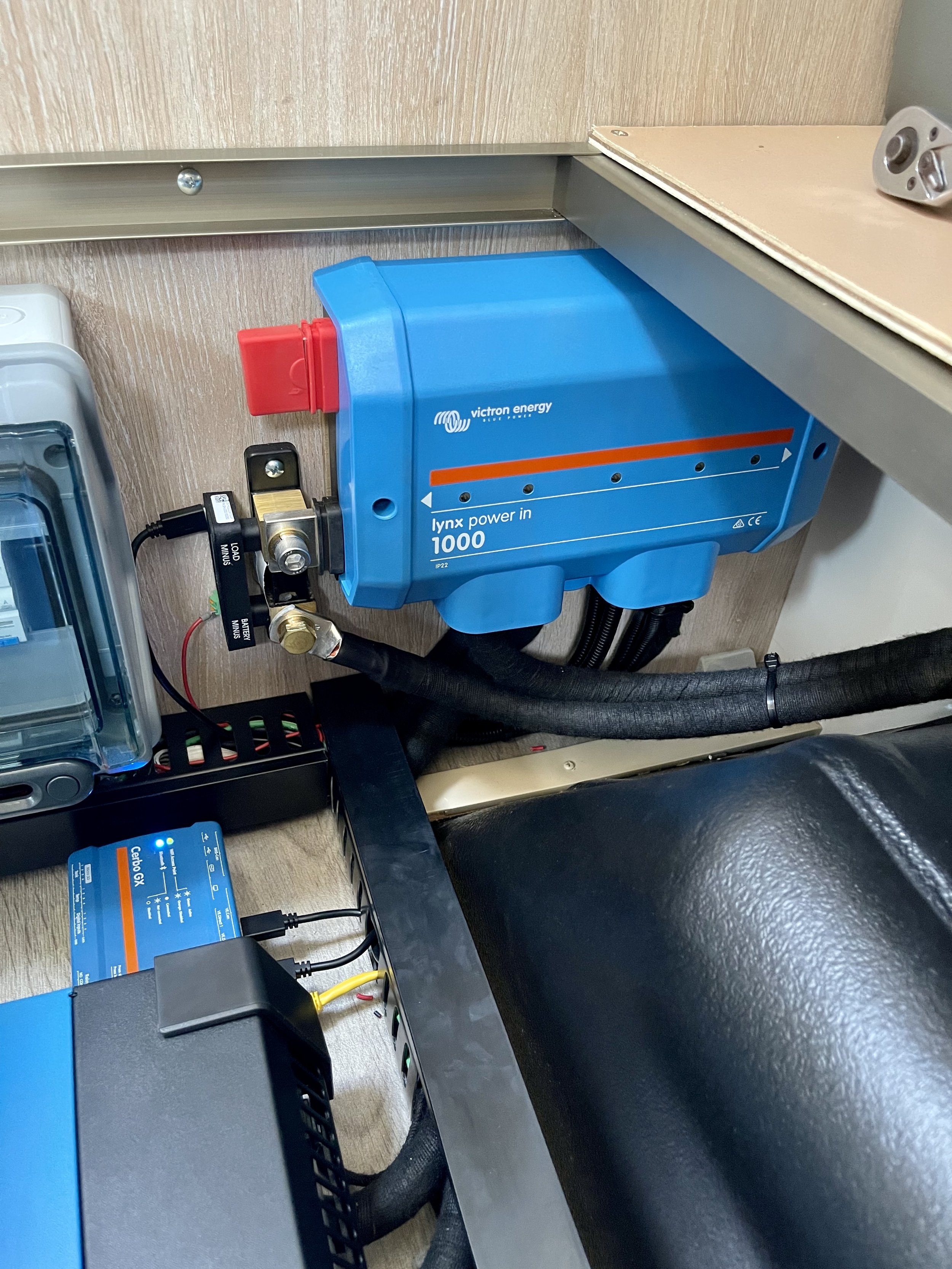

Victron Lynx Power In 1000

Victron Lynx Power In 1000 x 2

  • The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and the on board Lithium battery management.

AMPTRON Lithium Batteries

  • 2 X 12V 200Ah / 175A LiFePO 4 Lithium Battery

240 Volt Wiring

  • Integrated 240 volt wiring to and from MultiPlus II Inverter 3000VA / 2400W to service all 240 volt onboard and portable appliances.



SO, WHAT DOES THIS ALL MEAN?

Starcraft Charlie is a fully off grid portable home with no limits, now Alan can enjoy the great outdoors carvanning off the grid with the comforts of the home.

As an example; while off the grid Alan has the power capacity to run his air conditioner, use his coffee machine and charge his electronic devices without draining his batteries.

This off grid caravan power system was specifically built to Alan’s specifications so he can live off grid and explore the great outdoors for longer.
