Kokoda Salute Platinum Caravan
RV Lithium Battery Power Set-up!
620Ah 12V Custom Lithium RV Battery + 1200W Caravan Solar Panel, 2600W Inverter
A CARAVAN POWER SYSTEM TO RUN YOUR AIR-CONDITIONER OFF-GRID
LIVE FREE | STAY LONGER | LIVE COMFORTABLY
2015 Kokoda Couples Caravan - Complete Lithium Power System + Extras!
Guy & Marjorie came to Outech Offgrid to get their 2018 Kokoda Caravan power system upgraded for extended holidays off-grid. Here’s what the had say:
“We spend weeks, sometimes months at a time camping in remote areas of Australia indulging in our passion of astrophotography.
To make this not only possible, but also comfortable we are looking for a reliable power setup that will run our 240V appliances while off grid. From our caravan power system, we need independent power as we won’t be plugged into mains, so our power setup needs to have enough power and capable of charging our camera batteries, laptops, microwave, induction cooktop, coffee machine, Starlink, CPAP machines, charge Milwaukee tools AND run the air-conditioner!”

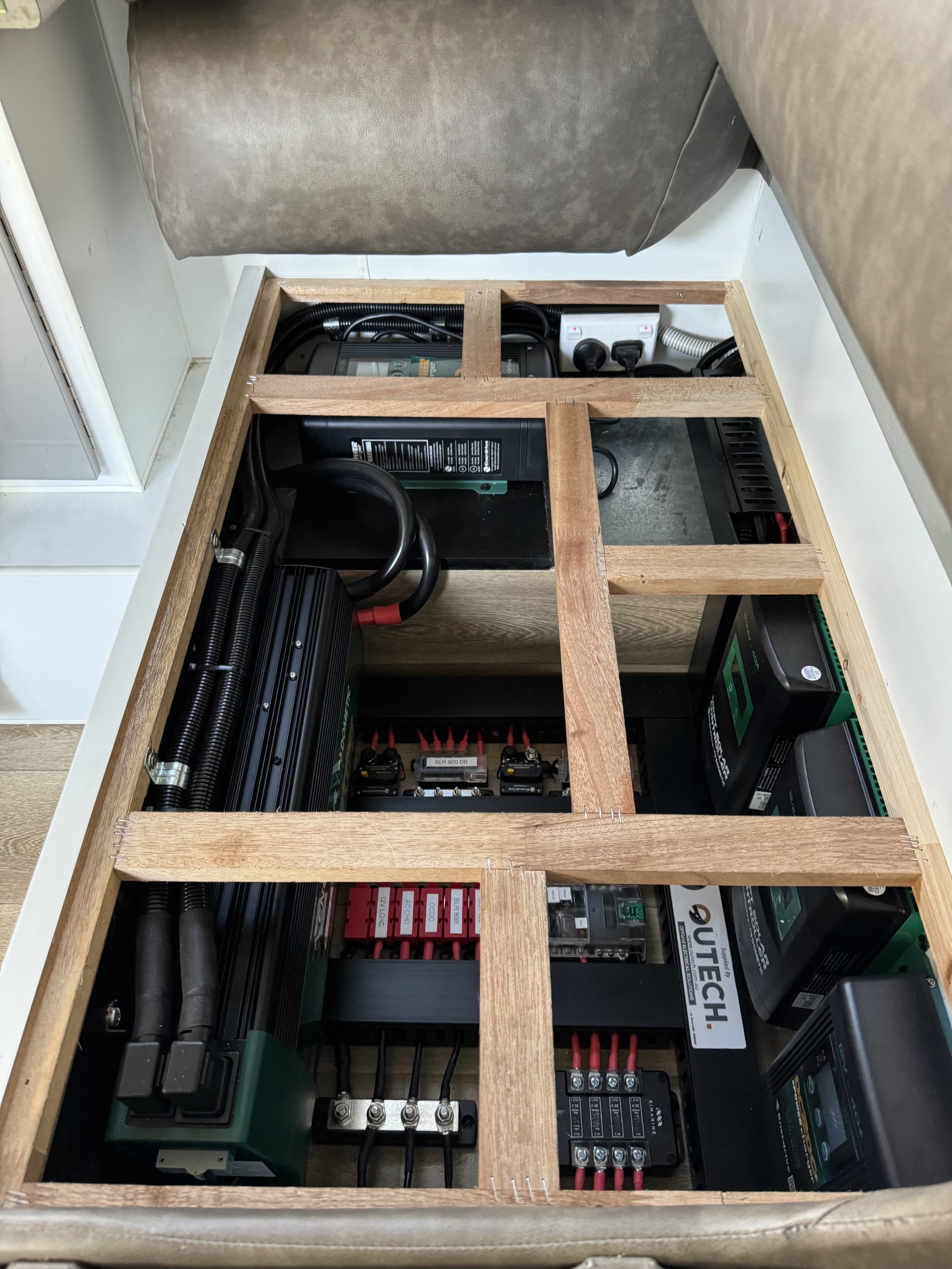

The Caravan Power Set-Up:

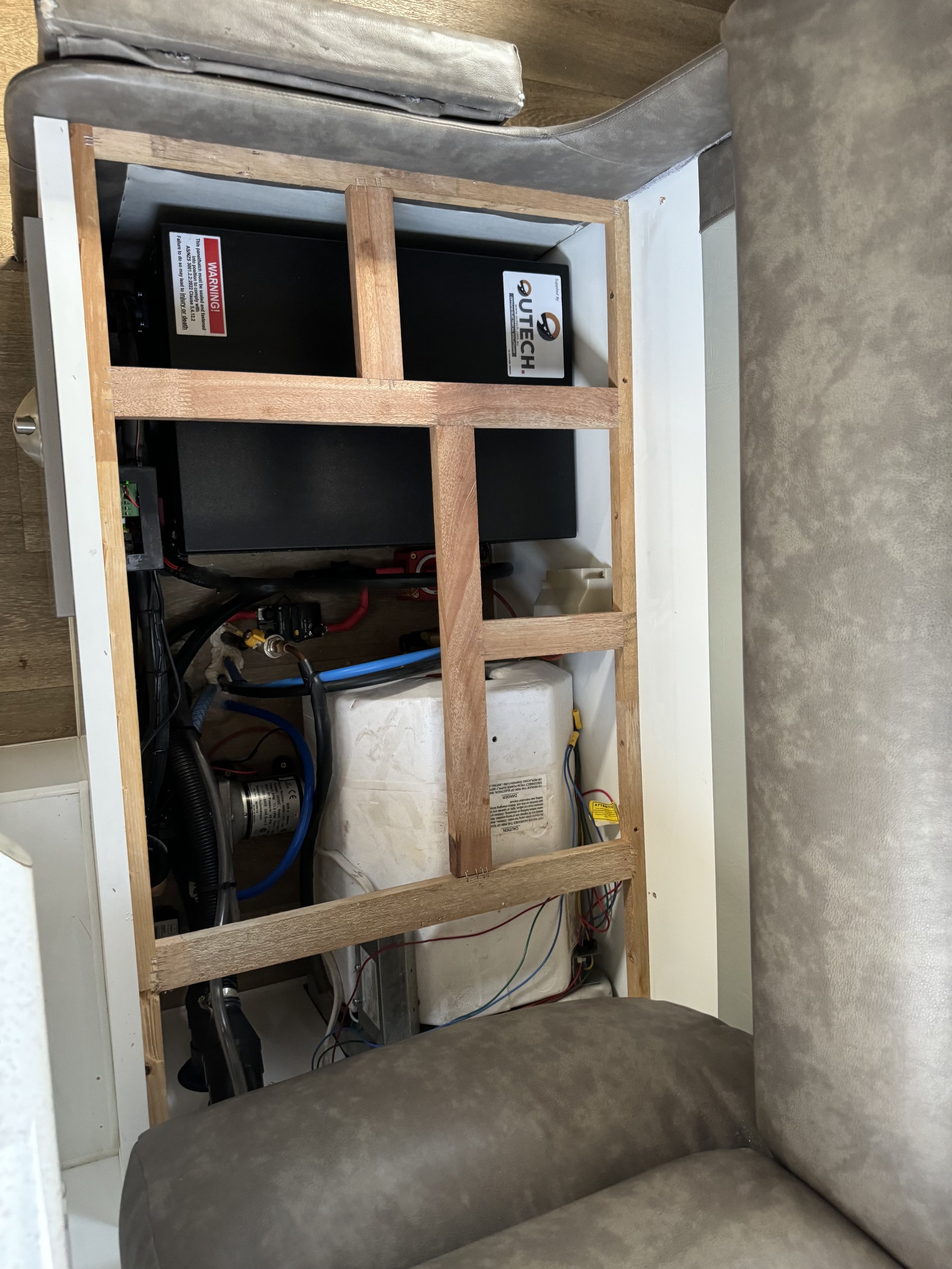

🔋620Ah RV Custom Lithium Battery Bank
🔋1200W Caravan Solar Panels - Mixed Voltage - High Voltage Solar Panels & Low Voltage Solar Panel (See YouTube for more info)
📍Plus external Anderson for portable solar panels enabling backup solar boost, monitored through main Simarine Pico Monitoring System.
🔋2600W Inverter -ePOWER Enerdrive 2600W 12V True Sine Wave Inverter with AC Transfer & Safety Switch
📍LED Remote Control Display Panel located in the overhead cupboard for easy viewing and operation.
📍Inverter is fully integrated and 240v Hard wired to all GPO power points for power to air-conditioner, microwave, Starlink etc while off-grid,
📍External power outlets for 240v power access from outside of caravan
PLUS hardwired to all internal and external power outlets.
🔋DCDC Battery Charger - Enerdrive | Dometic ePOWER DC2DC 40A+ Battery Charger.
📍Installed to utilise the multi input battery charging function. 3 charging sources; charging house battery via alternator battery while in tow, + solar simultaneous dual charging while in tow, plus solar charging the RV battery while camped up and disconnected from the tow vehicle.
🔋AC Charger - Enerdrive | Dometic ePOWER 40A AC Battery Charger
📍Battery bank charging via mains power or caravan park powered site.
🔋MPPT Solar Regulator Chargers Controllers - Enerdrive
📍Multiple solar regulator charges installed to maximise this specific caravan solar array where low voltage and hight voltage panels have been installed to increase the ration of energy utilisation to achieve rapid recharge while camping off grid.
🔋Caravan 240 volt Main Switchboard
🫶Replace & Rewire 240 volt Main Switchboard.
NOTE: It is illegal and unsafe for unqualified persons to install or modify caravan 240v electrics. An auto electrician is not qualified or licensed to install caravan 240 volt electrics, including the hardwiring of caravan inverters and caravan main switchboard.
Only a Qualified Electrician with a Contractors Licence is legally certified to install caravan 240 volt electrics, including the hardwiring of caravan inverters and caravan main switchboard.
The Caravan Battery Management and Monitoring System
🔋Simarine Advance Battery Management and System Monitoring Package
📍Simarine PICO Screen displaying Comprehensive battery monitoring with precise information for state of charge from DC, AC and solar, power inflows and outflows, ability to monitor 240 v loads such as the air-conditioner, as well as all of the 12 volt power load in the caravan such as lights.
Complete control with no more guessing giving peace of mind in your caravan power set-up.
🤗The Caravan Tank Monitoring System
📍Simarine Tank Sender installed for caravan water and grey tank monitoring, wired to Simarine PICO Screen display in overhead cupboard.
🤗The Caravan Pitch & Roll Monitoring System
📍inclinometer for Caravan Pitch and Roll -Provides a view of both pitch and roll angles. This dual functionality allows you to check the caravan is on an even keel. Viewed and operated at the Simarine PICO Screen display installed in overhead cupboard.
🤗The Caravan Accessories
✳️Sirocco fans to help keep the caravan cool.

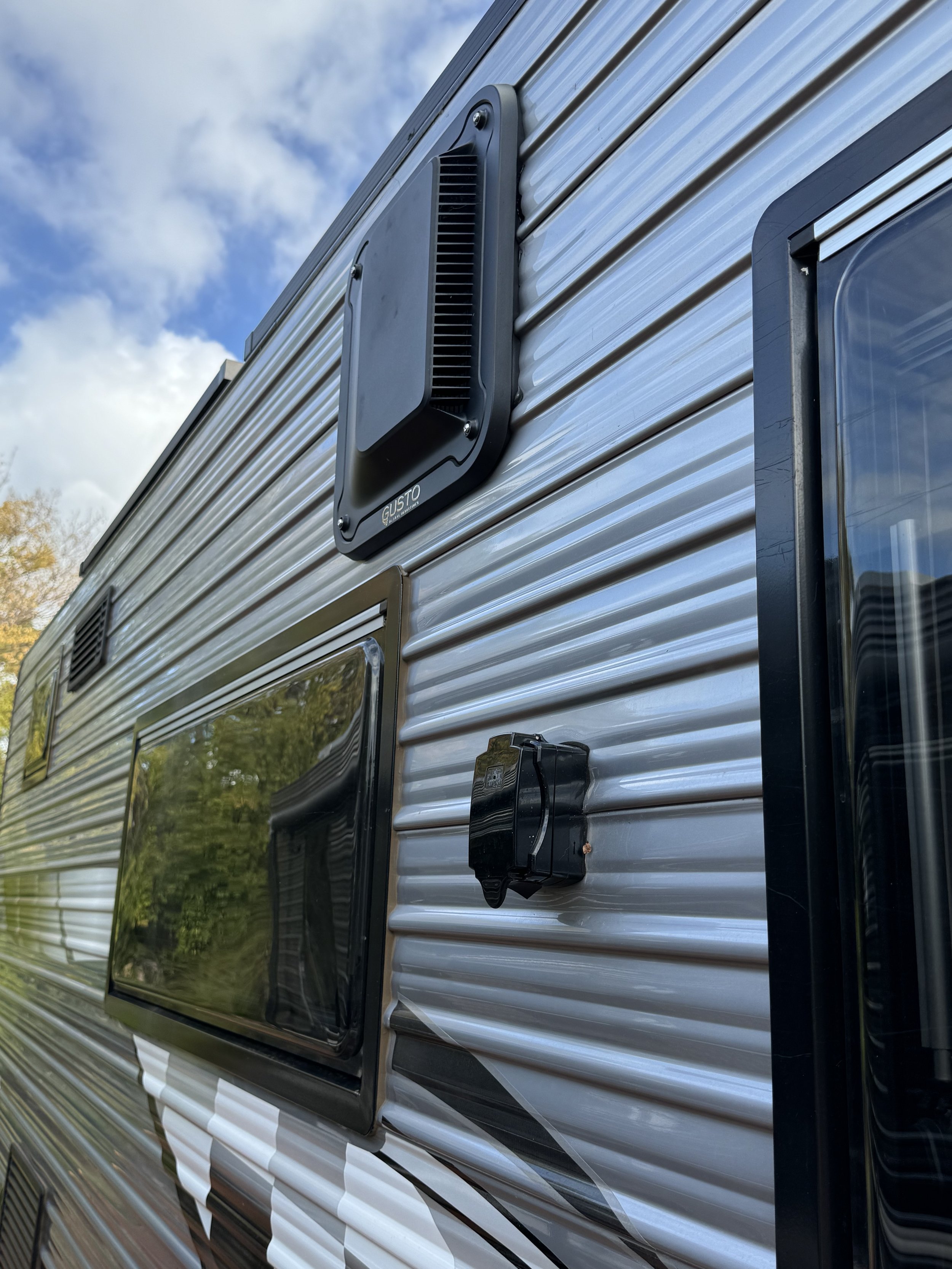

✳️Gusto Dust Reduction System - This is how to stop dust getting in the caravan when driving dusty off-road.
✳️Installed USB’s for charging smart phones & devices in the caravan.
✳️Ibis 3 Air-Conditioner modifications installed to run off-grid via the caravan inverter when not plugged into mains power or plugged in at a caravan park.
This caravan power setup can run 240v appliances off-grid:
🥶Caravan Air conditioner,
⚕️CPAP Machine
👨🍳Caravan Microwave
☕Caravan Coffee machine
🧼Caravan Washing machine
👱♀️Hairdryer
🍳 Caravan Induction cooker
🍞Caravan Toaster
🌐Caravan Starlink
🔌 Charge laptops and drones
Benefits Of An Outech Off-Grid Caravan Power System:
📍No more Guessing / No More Stressing. This off-grid caravan power setup packs a punch and comes with a comprehensive battery monitoring for state of charge from DC, AC, Solar, as well load monitoring. Control via integrated screen or remotely
📍No more costly caravan park fees
📍Choose unpowered sites to save cost
📍No lengthy setup – simple park and flick the switch
📍No more running out of power
📍Hassle Free Camping
📍NO HIDDEN INSTALLATION COSTS
📍Design & installation of 12v 240volt electrical systems are completed in house by our qualified electrician. We deliver a seamless solution and give you 1 Quote Inclusive of 240 volt installation and hardwiring
Our builds | Our Promise :
✅ Entire 12v to 240v Installation by Licensed Electrician | Qualified 12 volt and 240 Volt Electrician
✅Installation by Qualified Electrician with over 20 years’ experience
✅External Anderson for portable solar panels
✅ 240v fully integrated (power at all GPO’s)
✅Thorough handover
✅Unlimited technical support
✅Lifetime warranty on workmanship
✅5 year warranty on electrical components and battery.
✅Compliant to AS/NZS3001.2:2022
✅Electrical Safety Certificate Issued
Outech OFFGrid are qualified electricians; specialising in the design and installation of caravan off-grid power. Including 12v, 24v and 240v systems in caravans, motorhomes, campers and 4WD’s.
