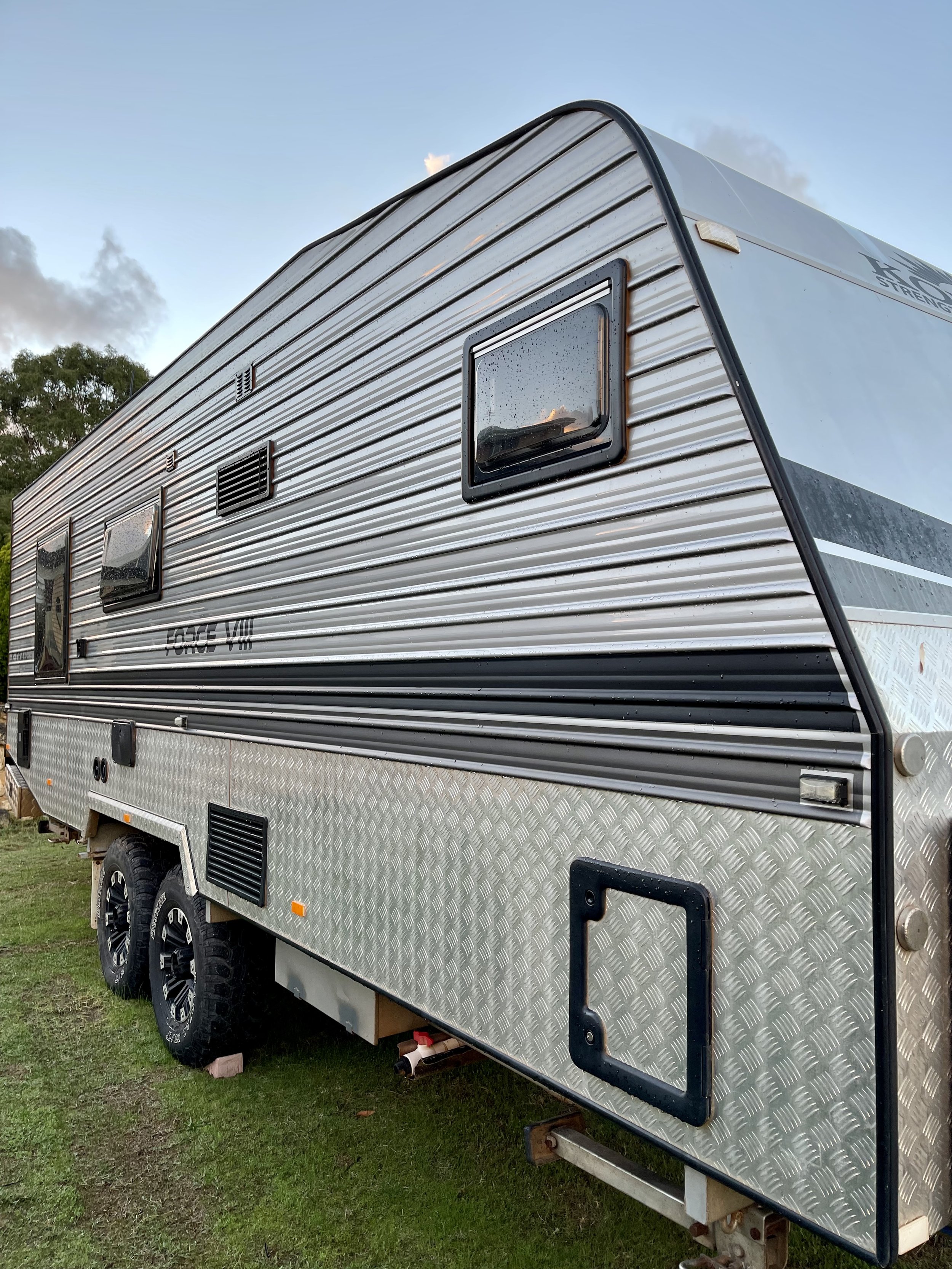

Kokoda Caravan Full OffGrid Lithium Set Up

Kokoda Caravan Full OffGrid Lithium Set Up

Swollen AGM Batteries in caravan are replace with Lithium Batteries.

Swollen AGM Batteries in caravan are replace with Lithium Batteries.

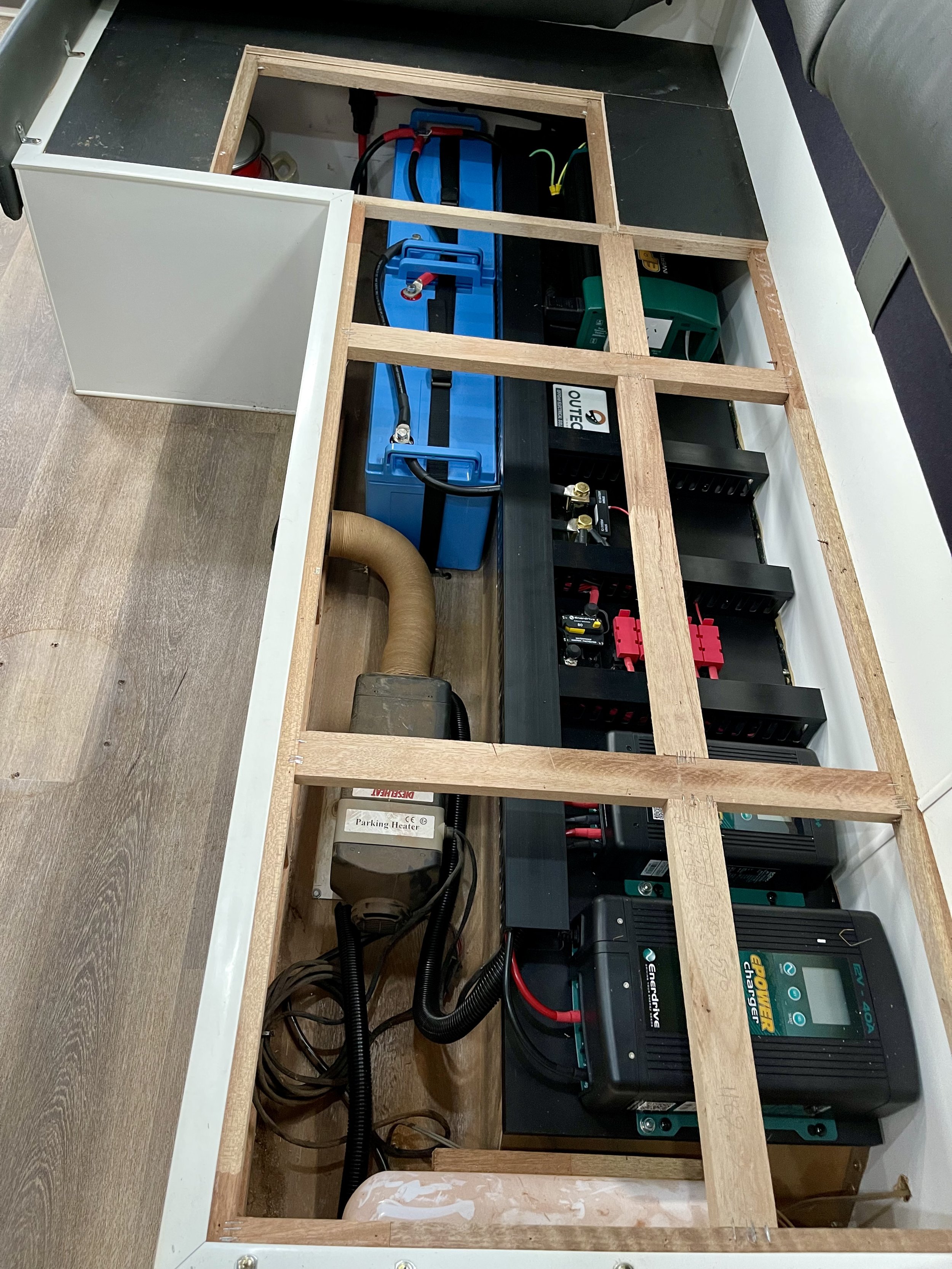

Kings Inverter installed under seat in caravan, but not hardwired.

Kings Inverter installed under seat in caravan, but not hardwired. Replaced with Enerdrive Inverter 240 volt hardwired to all caravan power points.


❌NO MORE GENERATOR,
❌NO MORE SWOLLEN AGM BATTERIES
❌NO MORE KINGS INVERTER
✔️NO MORE CARAVAN POWER ISSUES!

Running an extension leads from the under-seat Kings inverter to power 240 volt appliances was dangerous, cumbersome and a constant pain in the butt for Colin!

He was unhappy with the electrical power system in his caravan and was looking for a more efficient and user friendly solution to operate his coffee machine, air conditioner, toaster, microwave and CPAP machine while camping off the grid.

The #outechpowerupgrade custom build to suit Colin's needs:
Outech Offgrid Power Upgrade:
✅Enerdrive INVERTER ePOWER 2000W 12V wired to 240 volt circuits
✅Enerdrive BATTERY CHARGER 12V 40A DC2DC+ Battery Charger
✅Enerdrive AC BATTERY CHARGER ePOWER 12V 40A AC Battery Charger
✅Amptron LITHIUM BATTERIES - B-TEC 12V 2x150Ah LiFePO4 – 300aH with provision for an additional battery
✅700 Watts Roof Mounted SOLAR
✅Victron SMART SHUNT Battery Monitor + app for battery load monitoring;
✅Anderson plug at drawbar with connection to DCDC charger
✅Anderson plug to chassis = portable solar panel
✅Integrated & hard wired 12V & 240V wiring & electrical components to customised control panel to incorporate the inverter display. Housed in the overhead cupboard for ease of access.
✅The 240 volt is integrated throughout the caravan, enabling all electrical appliances to be plugged in at ‘the wall’ while off the grid!
✅ Wiring of inverter into existing 240V circuit in van compliant with AS/NZS3000:2018 and AS/NZS3001:2012

Enerdrive Inverter control panel wired to overhead cupboard in caravan.

Enerdrive Inverter control panel wired to overhead cupboard in caravan.

Enerdrive INVERTER, 12V wired to 240 volt circuits
Enerdrive 12V 40A DC2DC+ Battery Charger
Enerdrive 12V 40A AC Battery Charger
Amptron Lithium Batteries - B-TEC 12V 2x150Ah LiFePO4
